电动三通分料阀该系列三、四通溜子（又名分料器）广泛适用于建材、冶金、矿山、轻工、粮食等行业。作为固体晶粒、粉状物料输送系统中改变物料流向的理想设备。
The valve, which is also named separating material machine, is widely used in building material, metallurgy, mining, light industry and food industries etc. It is the ideal equipment to change flow direction of solid crystal and powder material in transportation system
电动三通分料阀结构特点
Structure characteristic
该阀采用优质钢板焊接而成，根据不同的需要配备不同的执行机构，具有轻巧耐磨，开位指示明确，切换方便，操作灵活等特点。
该系列阀按型号可分为 侧三通溜子，正三通溜子，四通溜子。按驱动方式分为： S 手动， D 电动， Z 自动， Q 气动， Y 电液动。
The valve is welded in fine steel and equipped with different actuators according to the different demands. It has the features of lightweight, antifriction, definite indicating direction, handy switching and flexible operation etc.
Type Ⅰ is side three-way liuzi, type Ⅱ is face three-way liuzi, type Ⅲ is four-way liuzi. The driving types are five: S denotes manual, D denotes electric, Z denotes automatic, Q denotes pneumatic and Y denotes electric hydraulic.
电动三通分料阀性能参数
Performance parameter
|
工作压力 Working pressure |
适用温度 Suitable temperature |
适用物料比重 Suitable material specific gravity |
适用介质 Suitable medium |
|
0.01MPa |
≤ 300 ℃ |
≤ 2.5t/m 3 |
晶粒、颗粒、粉状物料等 Crystal, grain and powder etc |
电动三通分料阀传动装置参数：
Transmission device parameter:
|
规格 Type |
200~250 |
300~400 |
500~600 |
700~800 |
|
电动推杆 Electric draw stem |
DT Ⅰ A63-M P ： 0.06KW |
DT Ⅰ A63-M P ： 0.09KW |
DTA Ⅱ 100-M P ： 0.25KW |
DT Ⅱ A250-M P ： 0.37KW |
|
自动装置 Automatic device |
DKJ-210 P ： 0.025KW |
DKJ-310 P ： 0.065KW |
DKJ-410 P ： 0.16KW |
DKJ-510 P ： 0.25KW |
|
气动推杆 Pneumatic draw stem |
10A-5TC50B |
10A-5TC63B |
10A-5TC80B |
10A-5TC100B |
|
电液推杆 Electric hydraulic |
DYT100 P ： 0.37KW |
DYT300 P ： 0.37KW |
||

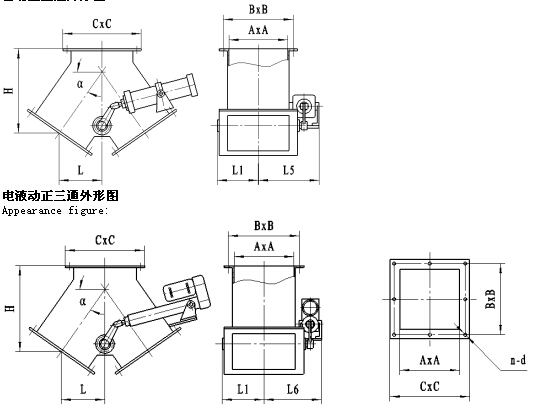

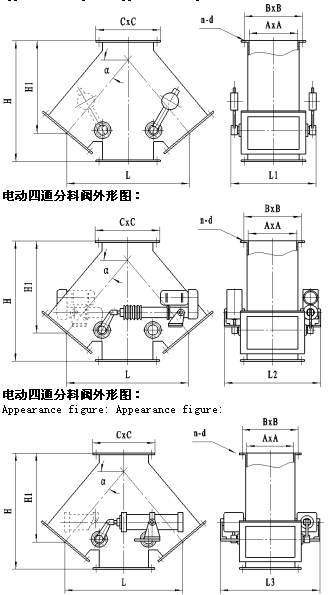

电动三通分料阀外形图：
Appearance figure: Appearance figure:
自动正三通外形图：
电动三通分料阀外形连接尺寸：
Appearance joint dimension:
|
A |
B |
C |
α |
H |
L |
n-d |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
|
200 × 200 |
245 × 245 |
280 × 280 |
45o |
267 |
177 |
8- Φ 10 |
180 |
220 |
220 |
290 |
320 |
340 |
|
50o |
282 |
174 |
||||||||||
|
55o |
299 |
161 |
||||||||||
|
60o |
352 |
160 |
|
A |
B |
C |
α |
H |
L |
n-d |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
|
250 × 250 |
305 × 305 |
350 × 350 |
45o |
298 |
198 |
12- Φ 10 |
220 |
250 |
250 |
310 |
345 |
410 |
|
50o |
330 |
193 |
||||||||||
|
55o |
338 |
181 |
||||||||||
|
60o |
396 |
182 |
||||||||||
|
300 × 300 |
355 × 355 |
400 × 400 |
45o |
322 |
212 |
12- Φ 12 |
250 |
280 |
280 |
375 |
370 |
440 |
|
50o |
349 |
209 |
||||||||||
|
55o |
386 |
204 |
||||||||||
|
60o |
431 |
200 |
||||||||||
|
400 × 400 |
455 × 455 |
500 × 500 |
45o |
381 |
251 |
16- Φ 12 |
280 |
325 |
325 |
425 |
420 |
470 |
|
50o |
419 |
251 |
||||||||||
|
55o |
448 |
244 |
||||||||||
|
60o |
525 |
245 |
||||||||||
|
500 × 500 |
555 × 555 |
600 × 600 |
45o |
470 |
310 |
20- Φ 14 |
350 |
385 |
395 |
480 |
500 |
520 |
|
50o |
532 |
320 |
||||||||||
|
55o |
557 |
290 |
||||||||||
|
60o |
644 |
300 |
||||||||||
|
600 × 600 |
655 × 655 |
700 × 700 |
45o |
502 |
290 |
20- Φ 14 |
400 |
450 |
450 |
540 |
550 |
570 |
|
50o |
561 |
310 |
||||||||||
|
55o |
643 |
330 |
||||||||||
|
60o |
738 |
340 |
||||||||||
|
700 × 700 |
755 × 755 |
800 × 800 |
45o |
617 |
380 |
20- Φ 14 |
450 |
500 |
500 |
630 |
620 |
650 |
|
50o |
678 |
400 |
||||||||||
|
55o |
795 |
420 |
||||||||||
|
60o |
937 |
442 |
||||||||||
|
800 × 800 |
855 × 855 |
900 × 900 |
45o |
672 |
408 |
24- Φ 14 |
500 |
550 |
550 |
680 |
670 |
700 |
|
50o |
763 |
445 |
||||||||||
|
55o |
900 |
482 |
||||||||||
|
60o |
1057 |
493 |
